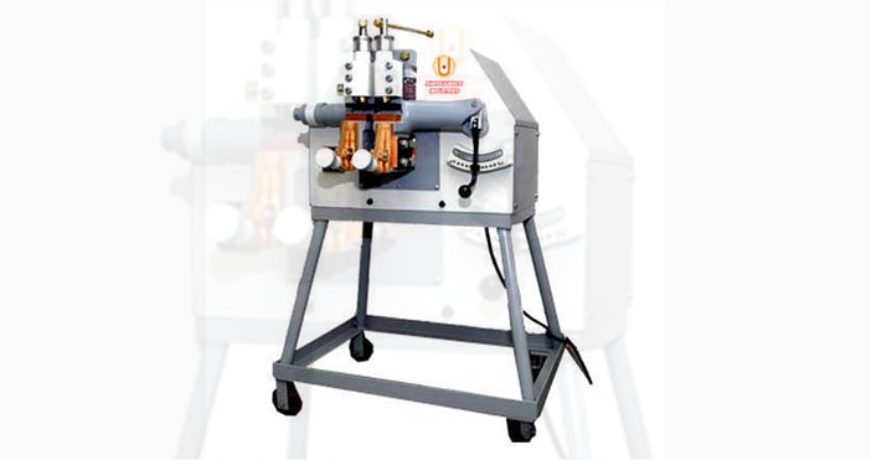

Technical Specifications - Heavy Duty Upset Butt Welder

• BRAND : Shreeji Weld Industries
• FREQUENCY : 50 Hz
• VOLTAGE : 380 V
• MAX RATINGS : 40 kVA
• DIMENSION : 710 X 675 X 1340 mm
• MACHINE DUTY CYCLE : 10%
• FUSE : 100 Amps
• APPLICATIONS : Welding
• FEATURE : ✔ UPSET TRAVEL - MOVABLE PLATEN TRAVEL ON TWO PARALLEL GUIDES ✔ UPSET PRESSURE - PROVIDED BY A PRECISION SPRING ACTION ON THE MOVABLE PLATEN ✔ CLAMPS - LEVER OPERATED ADJUSTABLE 'FLOATING' STEEL CLAMPS OF PRECISION QUICK ACTING DESIGN ENSURE FIRM PRESET CLAMPING PRESSURE. RELEASE QUICK AND EASY ✔ ELECTRODES - SPECIAL WEAR RESISTANT COPPER ALLOY ELECTRODES PROVIDED WITH PRECISION 'V' GROOVES PERMIT RAPID AND ACCURATE ADJUSMENT OF WELDING CURRENT BY MEANS OF A 8 STEP ROTARY SWITCH FROM 50% TO 100% ✔ ELECTRODE SPACING - OBTAINED WITH EASE BY A LEVER SET AGAINST AN INDEXING PLATE, ADJUSTING IN 10 STEPS ✔ ANNEALING FACILITY - SEPARATE ANNEALING ELECTRODES WITH SCREW TYPE CLAMPS PROVIDED FOR EASE AND QUICK ANNEALING OF THE WELDED JOB ALIGNMENT OF WIRES

By precisely understanding the changed needs of our customers, we have come up with a wide consignment of Heavy Duty Upset Butt Welder. Owing to their functional efficiency, longer life and durability, these offered welders are hugely acclaimed. Also, our ability to deal with their sole and bulk orders have gifted us massive appreciation in this nation.
